Our Machineries

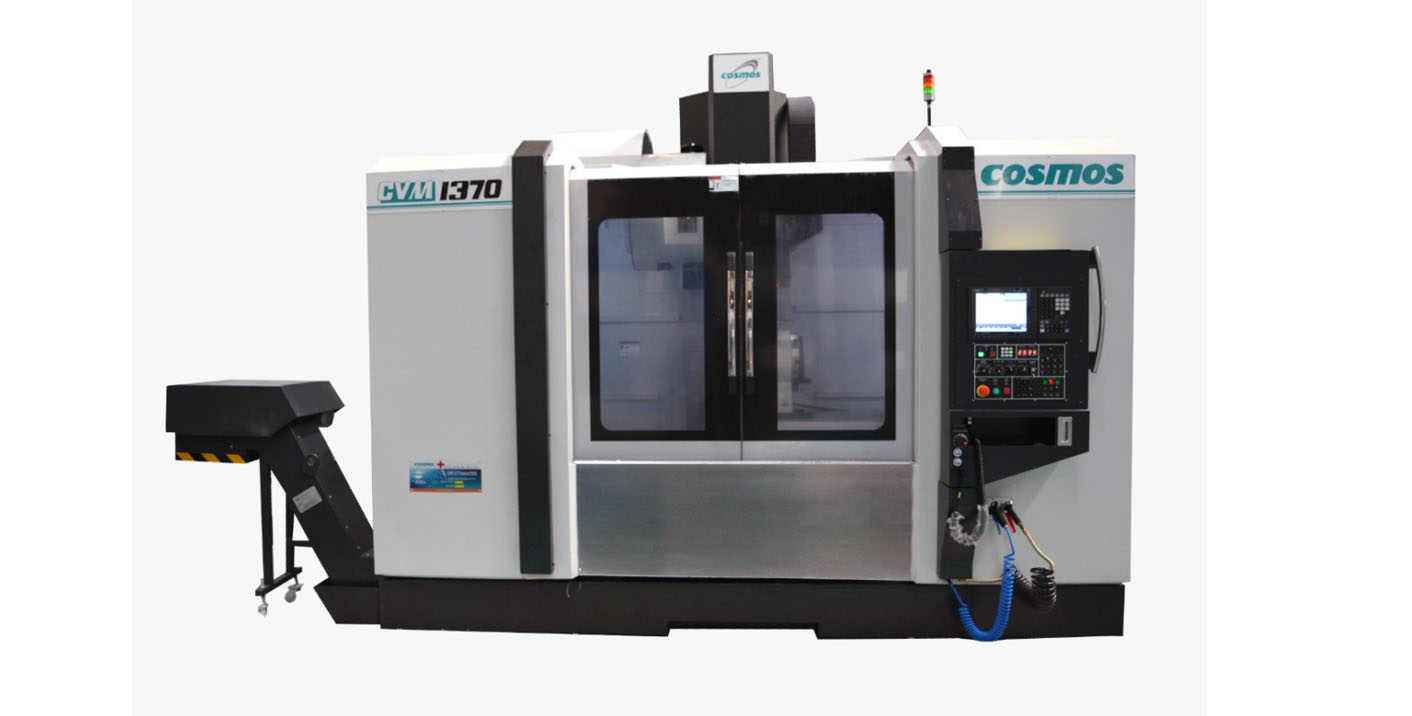

VMC – Cosmos CVM 1370 with ATC
- Bed Size – 1450 * 650 mm
- Travel Size – 1300 * 700 * 700 mm
- Spindle Speed – 10,000 RPM with direct drive
- Max Load – 2500 Kgs

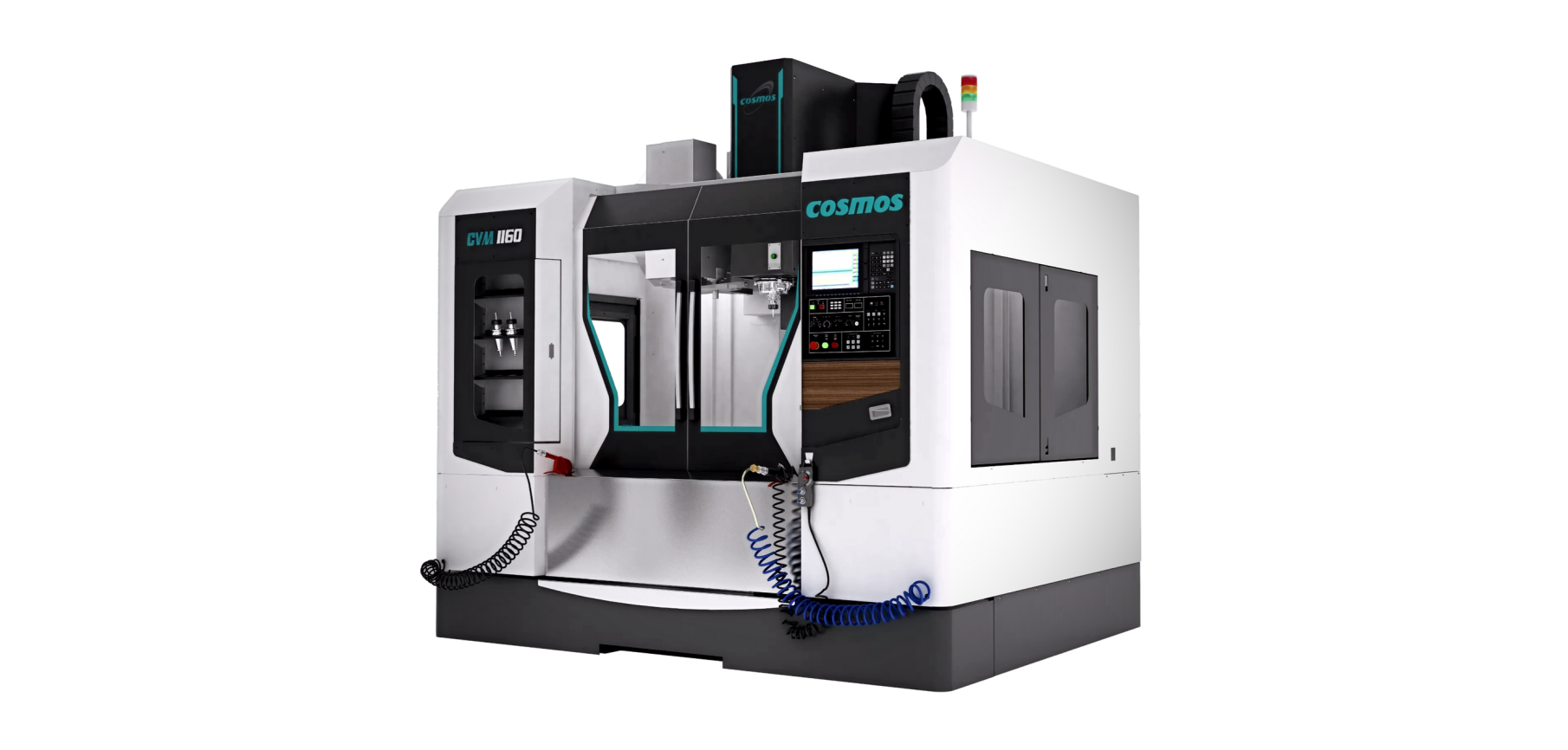

VMC – Cosmos CVM 800 with ATC
- Bed Size – 1000 * 500 mm
- Travel Size – 800 * 500 * 500 mm
- Spindle Speed – 8,000 RPM with belt drive
- Max Load – 750 Kgs

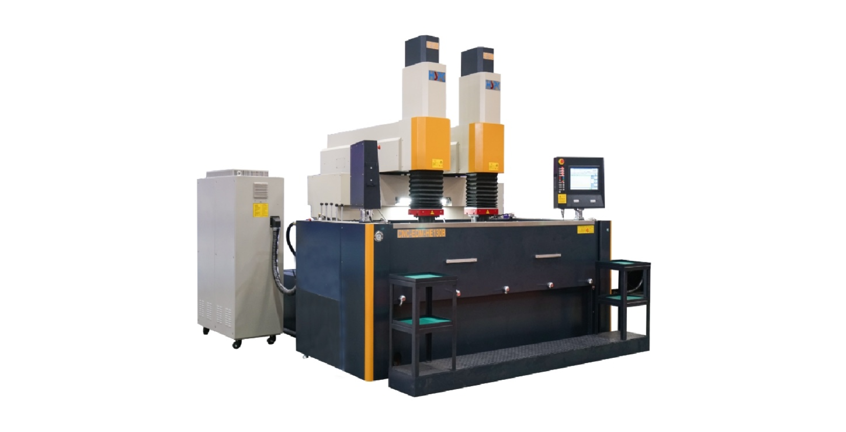

EDM – HSPK – Twin Head
- Tank Capacity – 2500 * 1300 * 650 mm
- Travel – (800 + 800) * 600 * 400 mm
- Max Load – 8000 Kgs

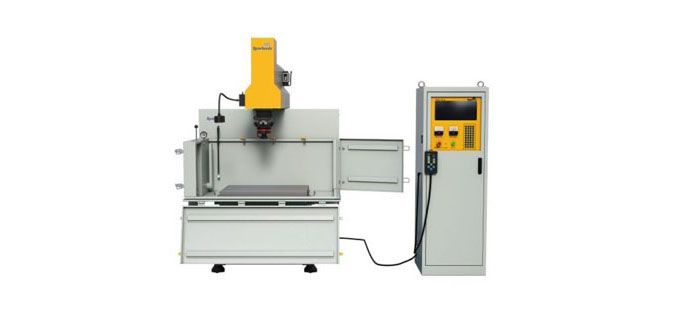

EDM – Sparkonix S35
- Tank Capacity – 800 * 500 * 325 mm
- Travel – 300 * 200 * 200 mm
- Max Load – 300 Kgs

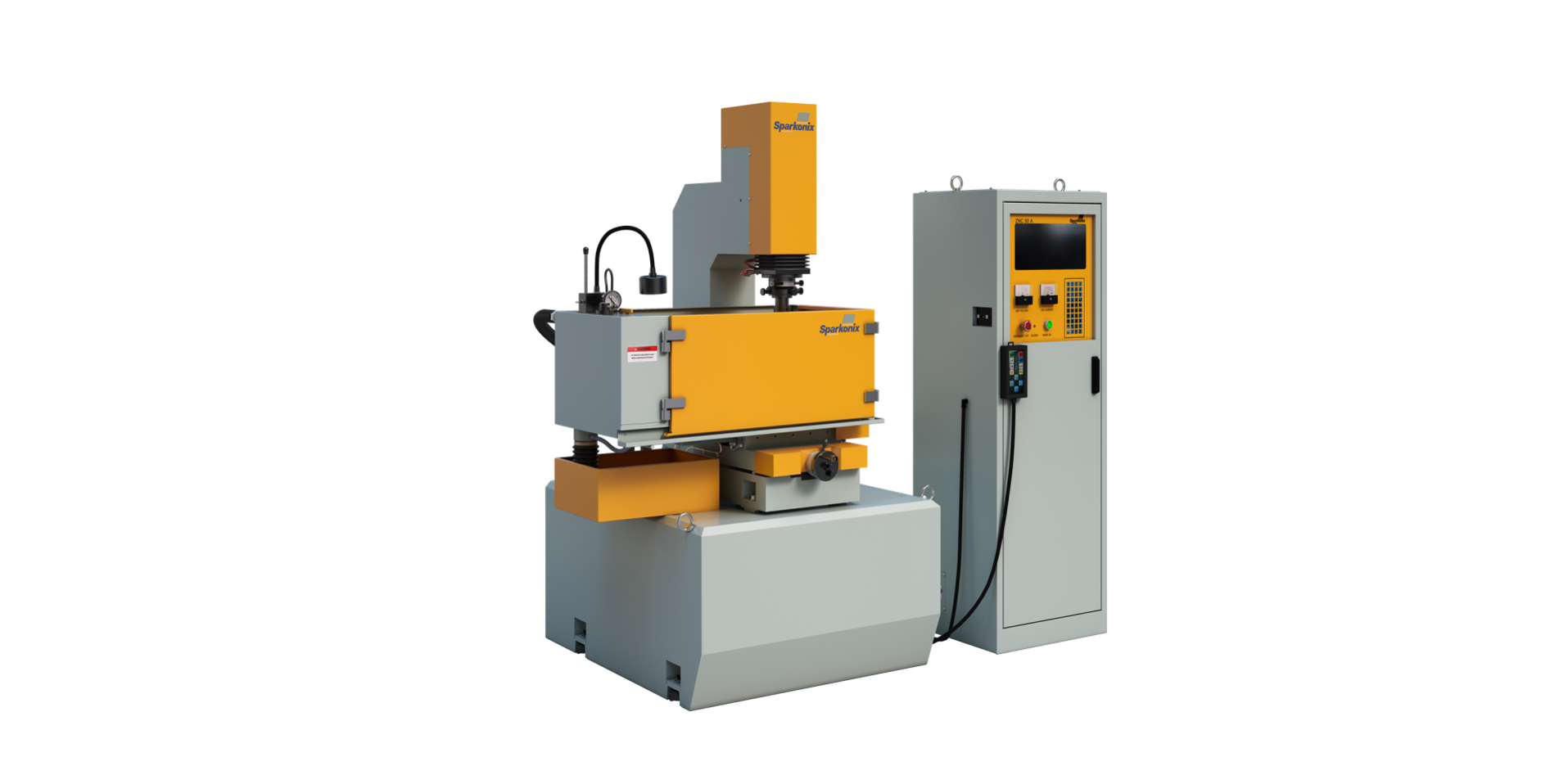

EDM – Sparkonix F65+
- Tank Capacity – 1500 * 800 * 500 mm
- Travel – 800 * 500 * 250 mm
- Max Load – 3500 Kgs

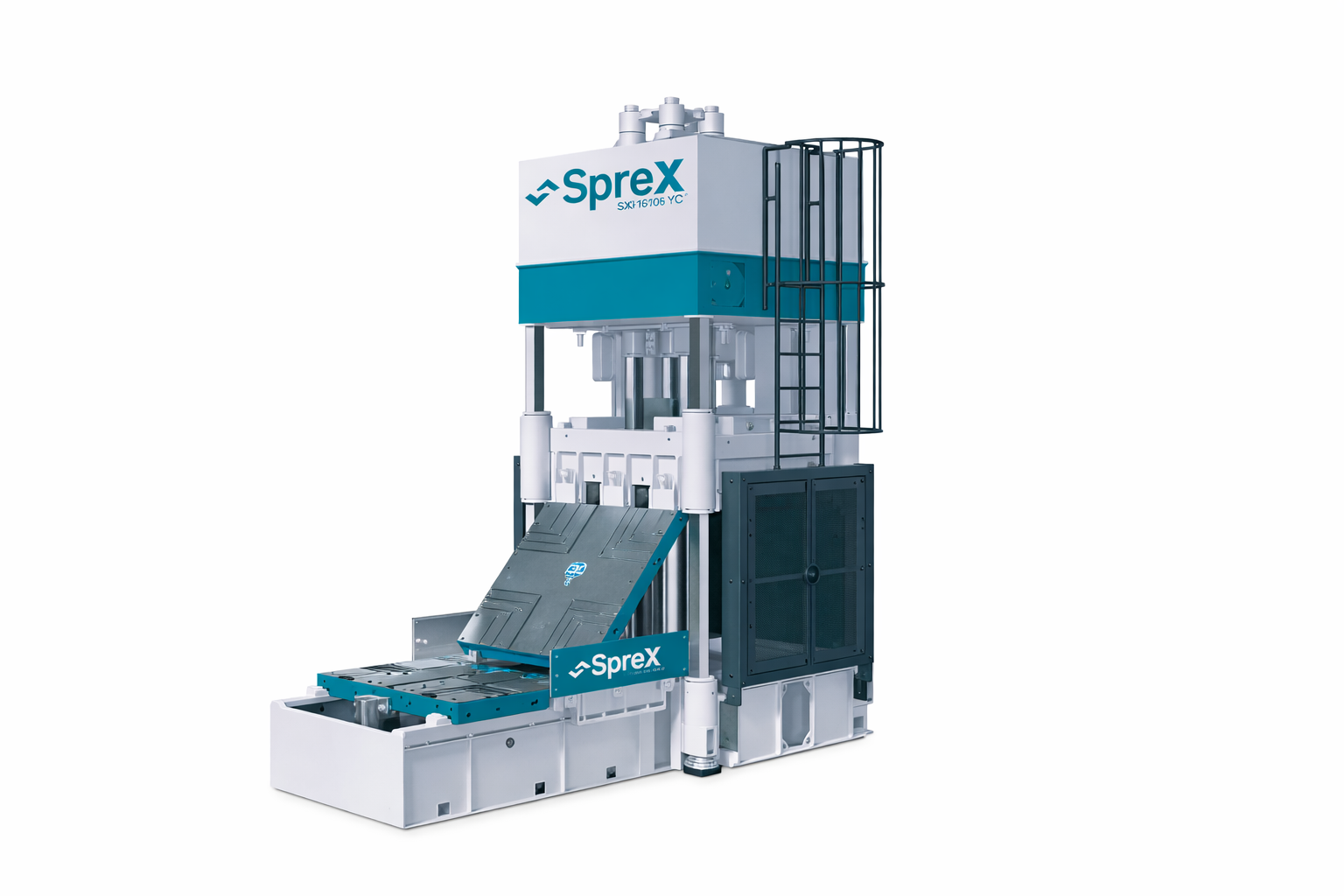

High Precision Die Spotting Machine – SX160 YC
- Pressure Capacity – 160 Ton
- Open Capacity – 38 Ton
- Overturn Capacity – 8 Ton
- Ejecting Capacity – 6.3 Ton
- Plate Size – 1600 × 1300 mm
- Ejection Stroke – 300 mm
- Max Mold Weight – 16 Ton
- Motor Power – 18.5 kW

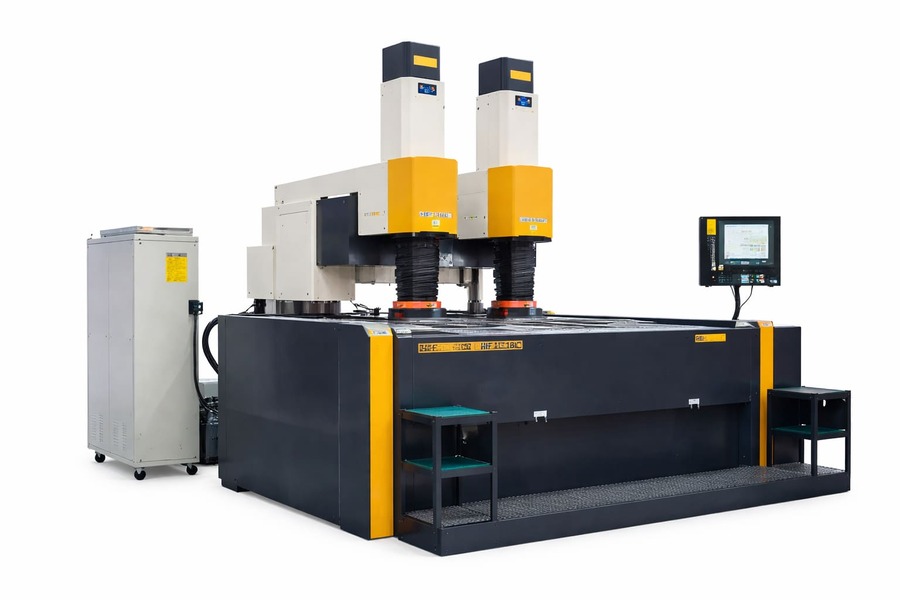

CNC – EDM – Model HF180
- Bed Size – 3500 × 1750 × 850 mm
- Working Table Size – 2000 × 1000 × 850 mm
- Travel – (1000 + 1000) × 700 × 500 mm
- Max Load – 10000 Kgs
- Qty – 1 Nos
Production Plant
